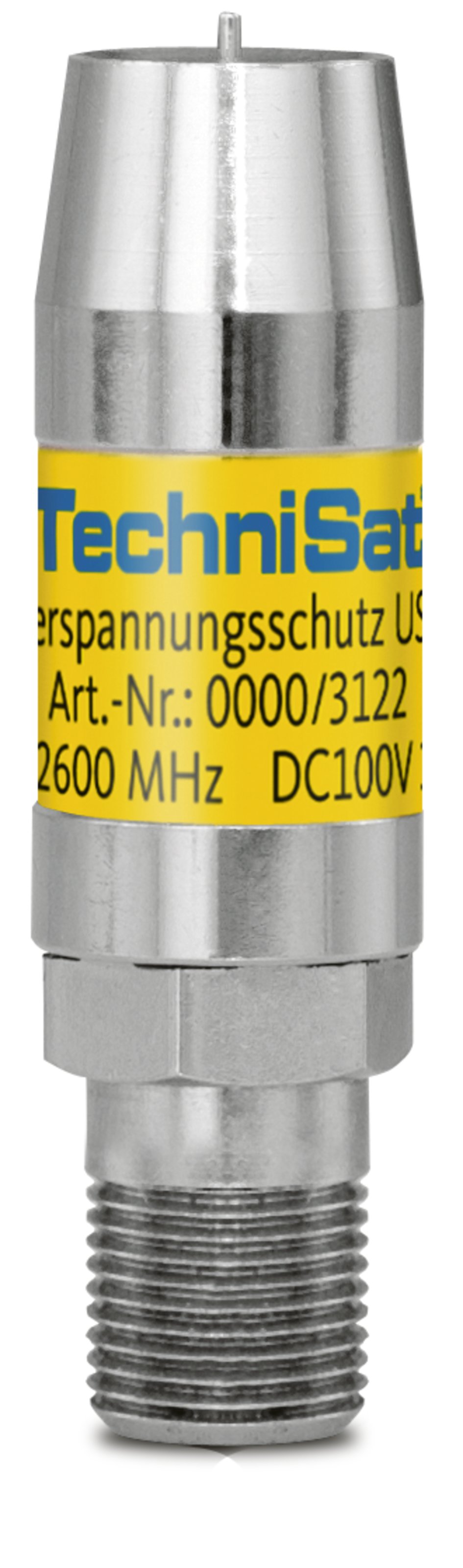

TechniSat USS1 surge protector in silver/yellow [item number 0000/3122]
The USS1 coaxial surge protector reliably protects sensitive electrical devices and electronic components in satellite reception and distribution systems from overvoltages that can occur, for example, during close lightning strikes or as a result of static charges.
In addition to a properly executed lightning equipotential bonding, the USS1 effectively protects your electronic devices from overvoltages up to 4,000 volts. Installation is very simple: In satellite distribution systems, USS1 is simply screwed onto the device inputs of the multi-switches to be protected (preferably in conjunction with earthing brackets).
USS1 can also be installed as surge protection at the antenna inputs of satellite receivers or on TV sets with F-connection as well as on cable modems.
USS1 can be used in a frequency range up to 2.6 GHz (e.g. in antenna, broadband, microwave, GPS, mobile radio and CATV systems).
Product safety information
Manufacturer: TechniSat Digital GmbH, Julius-Saxler-Straße 3, 54550 Daun, Germany
E-Mail: impressum@technisat.de
Safety information:
Article information | TechniSat USS1 surge protector |
---|---|
EAN | 4019588031227 |
Colour | Silver/Yellow |
Item no. | 0000/3122 |
Weight (carton) | 38 g |
Weight (unit) | 20 g |
Unit (WxHxD) | 1.40 cm x 4.50 cm x 1.00 cm |
Carton (WxHxD) | 5.00 cm x 8.00 cm x 6.00 cm |
Frequency range | 5 MHz - 2600 MHz |
Throughput attenuation | < 0.5 dB |
Shielding effectiveness | > 100 dB (corresponds to EN 50083-2, class A+) |
Protection class | IP 67 |
Connection type | F socket/F plug |
Impedance | 75 Ω |
Voltage transmittance (SAT) | 100 V / 1 A |
