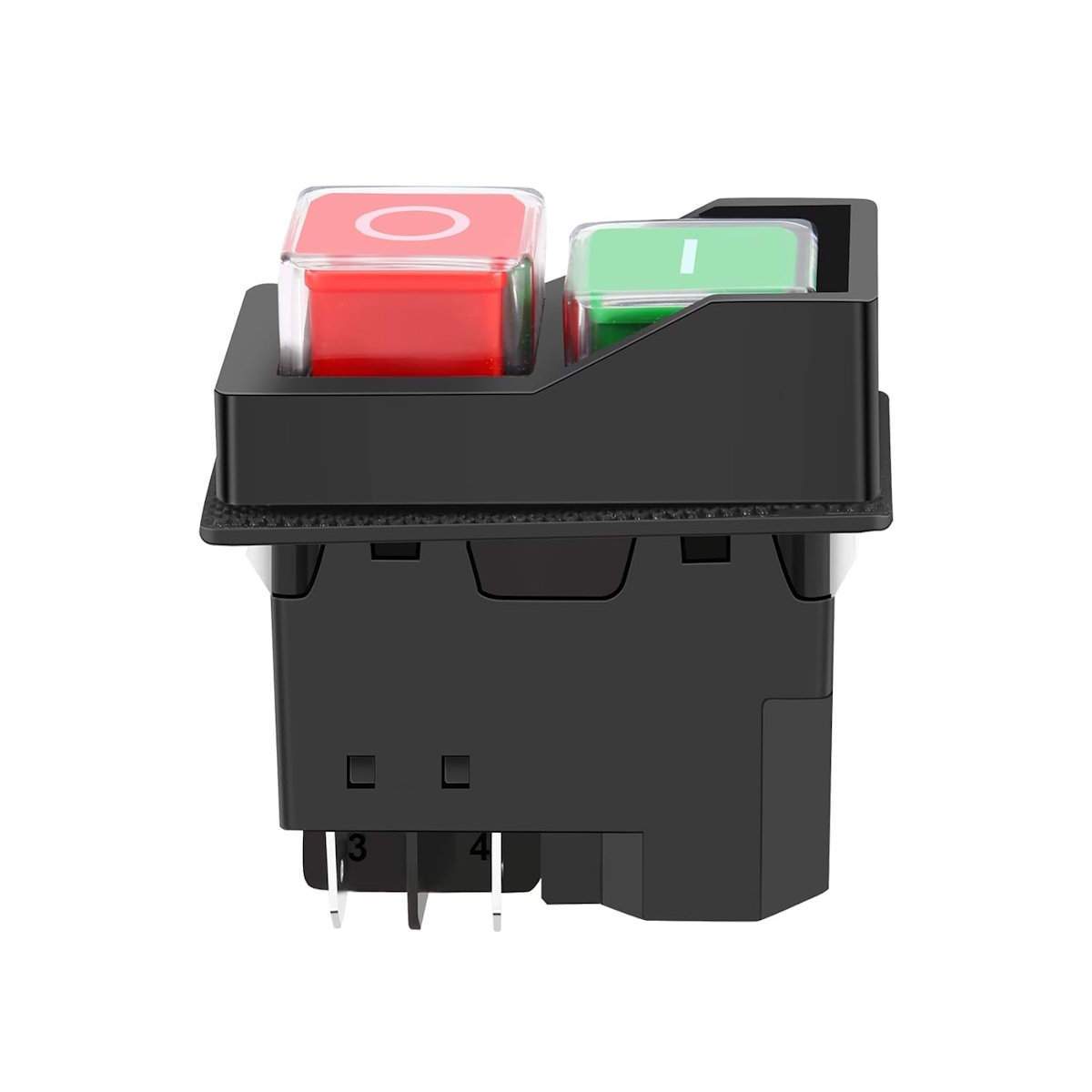

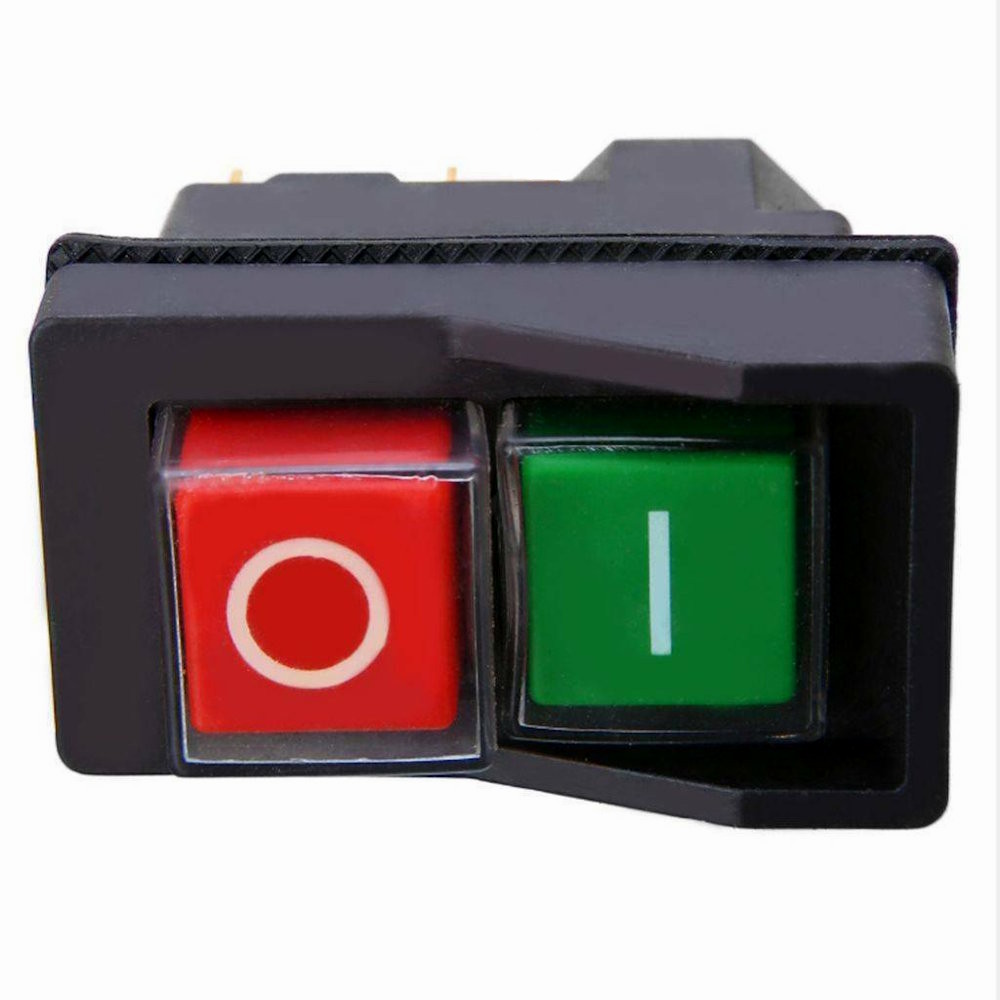

Tripus 555.199 UA-TP02-UC Zero-voltage switch – For safe switching and protection against unintentional restart
Tripus 555.199 Zero-Voltage Switch:
The zero-voltage switch for your safety
The Tripus 555.199 zero-voltage switch is an essential safety component for your power tools. As an essential flush-mounted switch with undervoltage release, it reliably protects you and your work environment from the dangers of an uncontrolled restart after a power outage. Ideal for a wide range of applications, from the workshop to the construction site.
It was specially developed for motors, concrete mixers, woodworking machines, and many other devices that must not restart automatically after a power drop. Its robust construction, simple snap-in installation, and the Made in Germany quality seal make it the first choice for professional tradespeople and quality-conscious DIY enthusiasts.
Safety and Efficiency – Convincing Features
Zero-voltage release: Protection against accidental start-up
The main advantage of this switch is its zero-voltage release. In the event of a voltage drop or power failure, the power supply to the machine is immediately interrupted. Even when power is restored, the machine remains off. It must first be manually restarted, which prevents accidents caused by suddenly restarting equipment.
Snap-In Installation: Quick and Easy
Installing this switch is child's play thanks to the snap-in system. It snaps securely into the standardized installation opening of approx. 46.5 × 22.2 mm without screws. This saves valuable time during initial installation and when replacing old switches.
Robust construction and IP65 protection
The front of the switch is rated IP65, making it dustproof and protected against water jets. Combined with the durable PVC buttons, it is ideal for use in demanding environments such as workshops, garages, or construction sites.
Your benefits at a glance
- Prevents accidents: Reliably protects against uncontrolled restarts of your machine.
- Saves time during installation: The "snap-in" system enables quick, tool-free installation.
- Durable and robust: Thanks to IP65 protection and high-quality materials.
- Versatile application: Ideal for a wide range of power tools and machines.
- High load capacity: Designed for 230 V / 16 A (AC-1) and 230 V / 14.5 A (AC-3).
- Quality "Made in Germany": Manufactured according to the highest German standards.
- Certified safety: With VDE and UL approval.
FAQ – Frequently Asked Questions
What is the difference from a switch with an external coil?
In this model (without a coil), the coil is not freely wirable. It is permanently connected to the switch's contact block, simplifying installation. Both switches offer the same high safety standard of zero-voltage tripping.
What is the difference between AC-1 and AC-3?
AC-1 refers to the switching capacity of pure resistive loads (e.g., heaters), while AC-3 stands for inductive loads (e.g., motors). The specified load capacity for AC-3 is lower due to the higher starting current for motors.
What does the identifier 555.199 mean?
The article number 555.199 is the official Tripus product designation for this specific zero-voltage switch. It serves to uniquely identify the product.
Technical Data
- Model: Tripus 555.199
- Description: Zero-voltage switch without external coil
- Switching function: 0 - 1 (On-Off)
- Contacts: 2 NO contacts
- Voltage: Rated operating voltage Uc 230 V / 50 Hz
- Switching capacity: AC-1: 230 V / 16 A, AC-3: 230 V / 14.5 A
- Connectors: 6.3 × 0.8 mm flat plug connectors; Optional coil connection (A1) 2.8 × 0.8 mm
- Dimensions (L × W × D): approx. 57 × 54 × 60 mm
- Weight: approx. 90 g
- Mounting: "Snap-In"
- Installation opening: approx. 46.5 × 22.2 mm
- Protection class (front): IP 65
- Approvals: VDE, UL
- GTIN / EAN: 4250318200166
Maximum safety for your tools –
One click for more protection!
Protect yourself and your machines with the reliable zero-voltage switch from Tripus.
Order Tripus switches now!| Technical Data / Dimensions | Value |
|---|---|
| Description | Tripus TP02 UC Zero-Voltage Switch – without coil |
| Switching Function | 0 - 1 |
| Contacts | 2 NO |
| Conventional Thermal Current Ith | 16 A |
| Breaking Capacity AC-1 | 230 V / 16 A |
| Switching capacity AC-3 | 230 V / 14.5 A |
| Rated operating voltage Uc | 230 V / 50 Hz |
| Connection | Flat plug connections 6.3 × 0.8 mm |
| Coil connection optional (A1) | Flat plug connection 2.8 × 0.8 mm |
| Material / color | PA / black |
| Dimensions (L × W × D) | approx. 57 × 54 × 60 mm |
| Weight | approx. 90 g |
| Mounting | Snap-In |
| Installation Opening | approx. 46.5 × 22.2 mm |
| Article Number | 555.199 |
| GTIN / EAN | 4250318200166 |
Subject to errors and technical changes.
