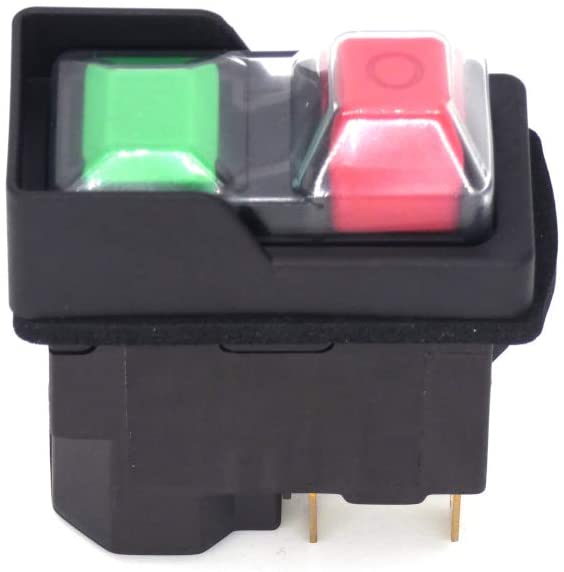

Tripus zero voltage switch, built-in switch TP3251-71 with coil UC 250V
€19.99*
Content:
1 Stück
Available, delivery time: 1 day
Product number:
1500052003
GTIN/EAN:
4250318201286
Weight:
0.78 Kg
Tripus zero voltage switch, built-in switch TP3251
+ running coil UC 250V/ 50HZ. Kline push buttons, executed coil, PVC cover, flat gasket,"snap in"
Zero voltage switch Machine protection switch with undervoltage release TP3251 Uc 230V/ 50Hz small push buttons PVC cover
Use for motors, cement mixers, drills, etc.
- Button-operated 2-pole on/off switch
- Undervoltage release
- "Snap-In" mounting
- with flat gasket
- Coil connection; optional
- Protection class front/rear
- IP 65 / 00 * (Protection against dust deposits and splashing water)
This Tripus product is manufactured in Europe in-house - Made in Europe by Tripus
VDE 0660 Part 102, DIN EN 60947
EAN: 4250318201286
* Free delivery
** Collection from the store in Gelsenkichen by appointment
Product safety information
Manufacturer: Tripus systems GmbH, Am Hohen Rain 2, 89347 Bubesheim, Deutschland
E-Mail: sales@tripus.de
Safety information:
Specifications
| Switch function | 0 - 1 |
| Contacts | 2 closers |
| Conventional Thermal Stream Ith | 16 A |
| Switching capacity AC - 1 | 230V / 16A |
| Switching capacity AC - 3 | 230V / 14.5A |
| Rated actuating voltage Uc | 230V / 50Hz |
| connector | Flat connectors 6.3 x 0.8mm |
| Coil connection; optionally (A1) | Flat connector 2.8 x 0.8mm |
| Material / Color | PA / black |
| Dimensions (LxWxD) | approx. 57 x 54 x 60mm |
| Weight | approx. 90g |
| Mounting | Snap In |
| Installation opening | approx. 46.5 x 22.2mm |
