TechniSat Digidish 33, Universal Twin LNB, smiley yellow + Digit S3 HD Receiver

- Compact design: The flat design and low weight make the system the ideal companion for on the go.
- Easy installation: Thanks to the included wall bracket and the clear instructions, the system is quickly ready for use.
- High reception quality: The universal twin LNB ensures stable reception and enables the simultaneous operation of two receivers.
- Versatile: Whether camping, in a mobile home or boat - the system is suitable for many areas of application.

ISIPRO
The free program list manager from TechniSat saves you the hassle of manual channel searches. When frequencies change or when programs are switched on or off, this service automatically updates the existing program list. This process is carried out if you have agreed to the update. Individual lists are retained and are adjusted if necessary.

TechniMatic
This free update service from TechniSat keeps the device's software up to date. As soon as extensions or improvements to the operating software are available, a software update is carried out automatically at the specified time (can be set in the device menu). This ensures a high degree of future security and a broader or improved range of functions.

AutoInstall
When you first start up the device, a few important settings still need to be made (especially adjustments to local conditions). The TechniSat installation assistant guides you through the easy-to-understand dialogs in clear steps so that the required configurations can be carried out quickly and effortlessly. Your device will then be ready for use in a short time.

TechniFamily
With TechniFamily, you can create password-protected user profiles. For each profile, you can define individual access options and restrictions, such as for selected programs or daily TV times, as well as a maximum usage time. This allows parents to adapt TV behavior to the needs of their child.

HDTV
HDTV stands for high-definition television and therefore for an excellent picture quality. In HDTV images can be displayed with much greater detail. Contrast and contours are more precise and colors are true to the original. In addition, the widescreen format of HDTV broadcasts is more in line with human viewing habits. Overall, a more lively impression is achieved.

Camping
The device can be operated with 230 volts via the normal power grid as well as with 12 volts via the power grid of a motor vehicle, for example, and is therefore also suitable for mobile use (when camping, etc.)

Universal Plug and Play (UPnP)
This device can be integrated into a home network. In this way, various multimedia devices can be networked with each other and controlled directly via UPnP/DLNA (e.g. PC, television, audio system, digital camera).

TechniRouter-ready
This receiver is compatible with all TechniRouter products. Supported SCR standards can be found in the technical data. SCR (Staleitte Channel routing) is a technology with which in a single-cable system a large number of satellite programs are transmitted to a specific receiver via a unique frequency.

2 participants
You can supply two receivers/televisions with TV and radio programs at the same time.

1 orbital position
With this receiver unit you can receive the programs of an orbital position, i.e. a very specific satellite. In Germany the antenna is usually aligned to ASTRA 19.2° East.
The Technisat 5613/4712 is the perfect choice for everyone who values mobile satellite reception. Whether at the campsite, in the motorhome or on the boat – with this compact and powerful system you can enjoy your favorite TV on the go. The easy installation and the high reception quality make it a reliable companion for all outdoor adventures.
Manufacturer:
TechniSat Digital GmbH,
Julius-Saxler-Straße 3,
54550
Daun,
Deutschland
E-Mail: impressum@technisat.de
Safety information:
Technical Data | Value |
Model | DIGIDISH 33 |
Material | Aluminum |
Material thickness | 1 mm |
Coating | Both-sided powder coated |
Mirror diameter | 33 cm |
F/D ratio | 0.6 |
Offset angle | 30° |
Profit | 30 dBi @ 11.3GHz |
Feed capture | 40 mm |
Noise level (lower/upper range) | 0.7 dB max. |
LNB | Universal Twin LNB |
LNB frequency range | 950 - 2150 MHz |
LNB control | Vertical: 11.5 - 14 V, Horizontal: 16 - 19 V, Band switching: 22 kHz |
Power supply | 11.5 - 19V, max. 190mA |
Dimensions (WxHxD) | 33 x 35 cm |
Weight | 2 kg |

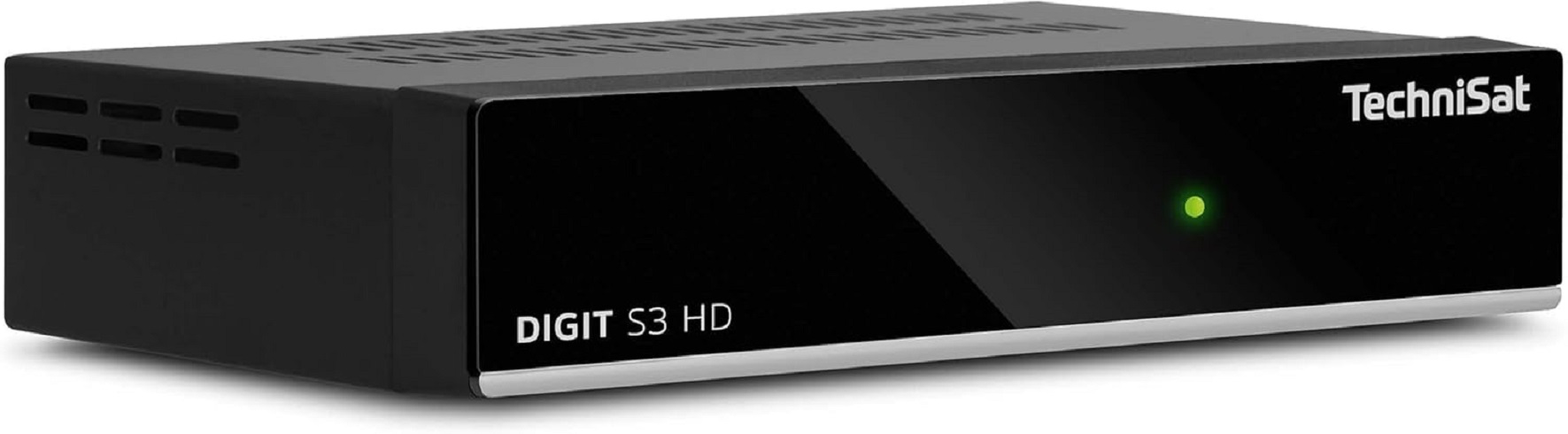

Technical data |
Value |
Model | DIGIT S3 HD |
Tune |
